Solid state voltmeter | Differential voltmeter | Electrical Instruments ( EIM ) | Lec - 09

TL;DR

This video explains solid state and differential voltmeters and their differences from conventional models.

Transcript

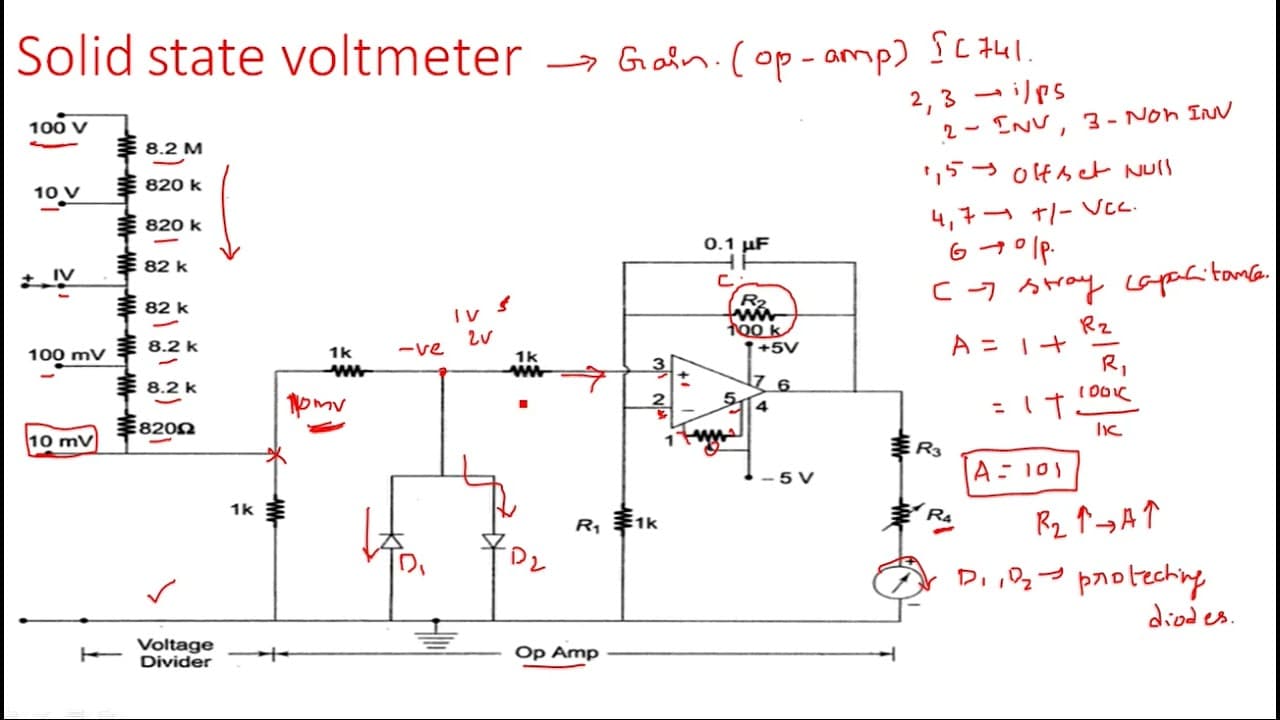

hi everyone in this video I'm going to explain about solid state voltmeter and a differential voltmeter what do you mean by solid state voltmeter and what is the difference between the voltmeter what we have seen conventional DC voltmeter or multi-range voltmeter and this solid state voltmeter solid state voltmeter and the main purpose of this soli... Read More

Key Insights

• ✋ Solid state voltmeters utilize operational amplifiers to achieve higher measurement gains compared to conventional voltmeters.
• ⚡ The voltage divider and feedback circuit configurations are essential for optimizing the performance of solid state voltmeters.
• ❓ Protection diodes in solid state circuits prevent damage from overvoltage conditions, ensuring longevity and reliability.
• ⚡ Differential voltmeters operate by comparing known and unknown voltages to provide accurate measurements at null deflection.
• 🖐️ Potentiometers play a vital role in differential voltmeters by enabling precise adjustment of the reference voltage for accurate readings.
• 👻 The offset null functionality allows for calibration of output to zero under no-input conditions, enhancing measurement accuracy.
• ⚾ The gain of solid state voltmeters can be adjusted by varying resistor values in the feedback loop, enabling customization based on measurement requirements.

Questions & Answers

Q: What is the primary function of a solid state voltmeter?

The primary function of a solid state voltmeter is to enhance the gain of voltage measurements through the use of operational amplifiers. This operational amplifier calculates the difference between incoming signals, effectively boosting the measurement's ability to detect smaller voltage variations compared to traditional voltmeters.

Q: How does the feedback configuration in a solid state voltmeter affect its performance?

The feedback configuration in a solid state voltmeter, typically through resistors, plays a crucial role in determining the gain of the operational amplifier. By adjusting the values of the feedback resistors, such as R2, users can increase or decrease the gain, thus affecting the sensitivity and precision of voltage measurements taken by the device.

Q: What are the protective measures used in solid state voltmeters?

Solid state voltmeters use protective diodes connected in a back-to-back fashion to safeguard the operational amplifier from excessive voltages. These diodes help to divert high voltages or reverse polarities to ground, preventing damage to the sensitive operational amplifier circuitry and ensuring reliable measurement.

Q: Can you explain the working principle of a differential voltmeter?

A differential voltmeter measures the difference between two voltage levels: a known reference voltage and an unknown voltage. By adjusting the potentiometer, the voltmeter ensures that the voltage levels are equal, resulting in zero current flow through the ammeter, which indicates null deflection and confirms that the unknown voltage matches the reference.

Q: What role does the potentiometer play in a differential voltmeter?

The potentiometer in a differential voltmeter is crucial for adjusting the reference voltage until it matches the unknown voltage. As it is varied, reaching a point where both voltages are equal results in a null reading on the ammeter, confirming that the two voltages are indeed the same, which is fundamental for accuracy in measurement.

Q: How does an operational amplifier contribute to the functionality of a solid state voltmeter?

The operational amplifier in a solid state voltmeter significantly boosts the gain of the incoming voltage signals. It operates as a differential amplifier, enhancing the measurement's sensitivity and accuracy by amplifying the voltage differences detected between its input signals, allowing for reliable and precise readings.

Q: What happens to the output of a solid state voltmeter when no input voltage is applied?

When no input voltage is applied to a solid state voltmeter, the output should ideally be zero. This is achieved through offset null adjustments made via the potentiometer connected to the operational amplifier's offset pins, ensuring that stray voltages or noise do not result in erroneous readings.

Q: How do varying resistor values in a solid state voltmeter affect its gain?

In a solid state voltmeter, adjusting the resistor values, particularly the feedback resistor R2, directly influences the amplifier's gain. An increase in R2 results in a higher gain, allowing the voltmeter to detect smaller voltage differences effectively, while a decrease lowers the gain, reducing sensitivity.

Summary & Key Takeaways

• The solid state voltmeter uses operational amplifiers to enhance measurement gain, with a circuit structure designed for effective volt measurement.

• The circuit includes a voltage divider and feedback mechanism to optimize performance, while also utilizing protection diodes to safeguard the operational amplifier from voltage spikes.

• The differential voltmeter compares known and unknown voltages to indicate zero current flow at null deflection, requiring careful adjustment of its potentiometer for accuracy.
