Equilibrium of 4 Force Members - Static and Dynamic Analysis - Dynamics of Machinery

TL;DR

Explaining the process of finding the equilibrium of four force members by reducing them to a system with two or three force members using vector diagrams.

Transcript

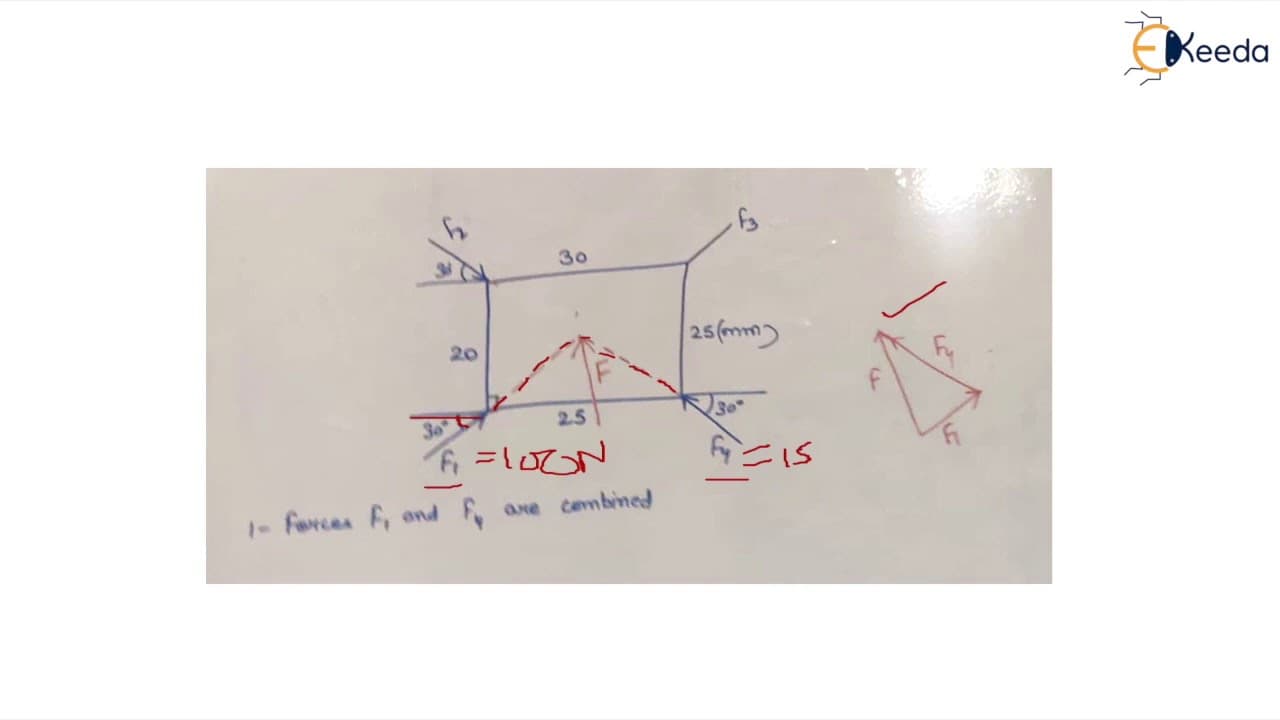

hello everyone in this video we'll discuss about the conditions required for equilibrium of four force members now there is no fixed condition or there is no fixed equation whenever we want to find the equilibrium of four or force members therefore in such cases what we do whatever known forces are there they are combined into a single force by usi... Read More

Key Insights

• 🔂 Equilibrium of four force members is achieved by combining known forces into a single force using vector diagrams.
• ❓ The system is simplified by reducing four or more force members into a system with two or three force members.
• 🫥 Equilibrium conditions for two force members include equal magnitudes, opposite directions, and alignment along the same line of action.
• 😥 Three force members achieve equilibrium when their forces intersect at a point of concurrency and their resultant is zero.

Questions & Answers

Q: What is the process for finding the equilibrium of four force members?

To find the equilibrium, known forces are combined into a single force using vector diagrams. The system is then reduced to two or three force members by simplifying the forces.

Q: What are the conditions for equilibrium in two force members?

In two force members, the forces must have equal magnitudes, opposite directions, and act along the same line of action. These conditions ensure that the forces balance each other out.

Q: How do three force members achieve equilibrium?

For three force members, the forces' line of action should intersect at a point called the point of concurrency. Additionally, the resultant of the three forces should be zero to achieve equilibrium.

Q: How can the value of an unknown force in a four force member be determined?

By using the vector diagram, the magnitude and direction of the unknown force can be determined by measuring the lengths and angles on the diagram.

Summary & Key Takeaways

• Equilibrium of four force members is achieved by combining known forces into a single force using vector diagrams.

• The system is simplified by reducing four or more force members into a system with two or three force members.

• For two force members, the forces should be equal in magnitude, opposite in direction, and along the same line of action.

• For three force members, the three forces' line of action should pass through a point of concurrency, and their resultant is zero.
