XOR gate | Truth Table | Properties | STLD | Lec-23

TL;DR

Exclusive OR gate outputs one when there's an odd number of ones in inputs.

Transcript

hi everyone in this video I'm going to discuss about exclusive rate exclusive orgate the name clearly tells that it is an exclusive gate which gives output one when odd number of ones are there in the inputs okay exclusively it checks for the odd number of inputs in this XR gate and in xar Gate it checks for the even number of ones if there are eve... Read More

Key Insights

• 🔢 The exclusive OR gate's output is reliant on the number of one inputs, making it indispensable in digital logic design.
• 🔬 XOR gates can be combined with other logic gates to create more complex systems and functionalities, demonstrating their versatility.
• 😑 Properties such as A XOR 1 = A’ and A XOR A = 0 are essential for simplifying logical expressions in professional applications.
• 🔬 Understanding the truth table of the XOR gate is critical for anyone working with digital electronics or computer science, allowing for logical deduction in circuit analysis.
• 🖐️ The XOR operation plays a vital role in digital communications for error detection, enhancing signal integrity during transmission.
• 🎨 Mathematically, XOR operations can be represented in more complex logical equations, underscoring their importance in algorithm design.
• 💻 The role of the XOR gate extends beyond basic operations to enabling sophisticated functionalities in computers and digital systems.

Questions & Answers

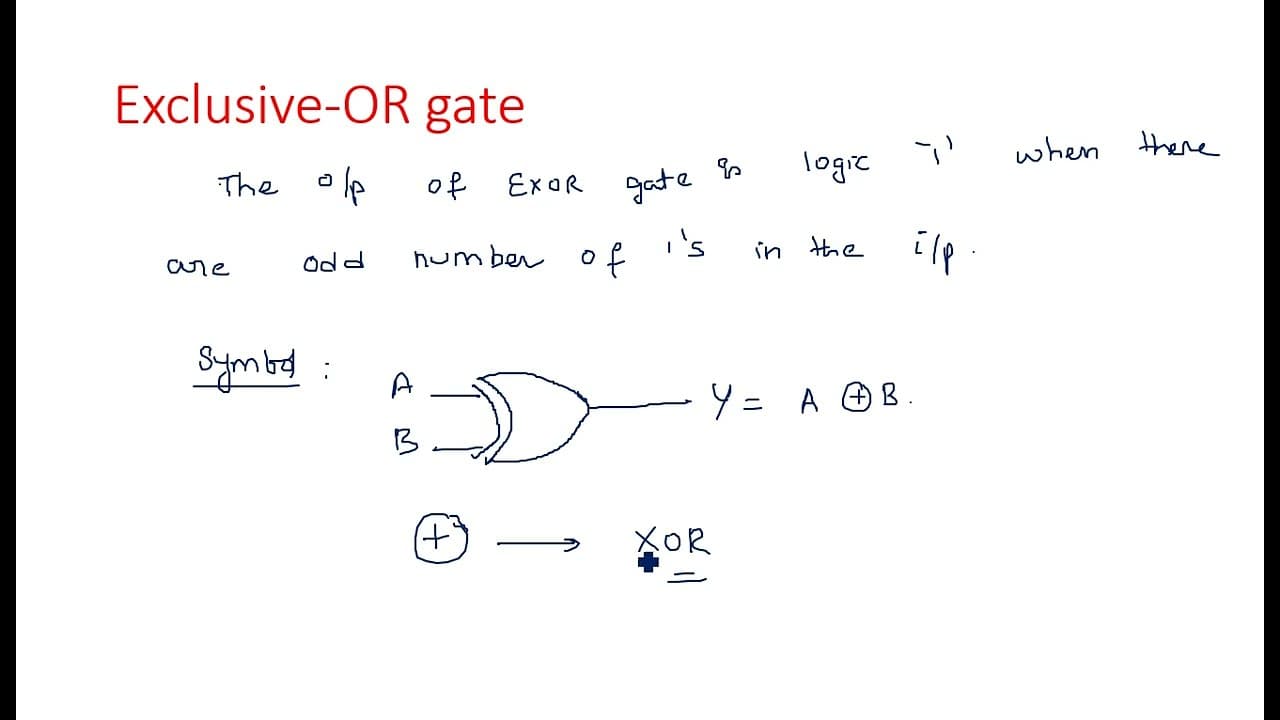

Q: What is the main function of the exclusive OR gate?

The exclusive OR (XOR) gate serves to output a high signal, or one, only when there is an odd number of ones in its input signals. This makes it fundamentally different from standard OR gates which output one whenever there is at least one high input. The XOR gate is crucial for various applications in digital circuit design and logic operation.

Q: How does the truth table for the XOR gate look?

The truth table for a standard XOR gate with two binary inputs shows four possible combinations: for inputs (0, 0) it outputs 0; for (0, 1) it outputs 1; for (1, 0) it outputs 1; and for (1, 1) it outputs 0. This illustrates that the output is one only when one of the inputs is one, underscoring its characteristic of checking odd parity.

Q: Can you explain one of the properties related to the XOR gate?

One property of the XOR gate is that if you input a zero along with one (e.g., A XOR 0), the output remains the same as the input A. This means that the XOR operation with zero essentially acts as a pass-through for the other value. This property is useful in simplifying logic equations and ensuring certain outputs in circuits.

Q: What happens to the output when the same input is fed into an XOR gate?

When the same value is input into an XOR gate (A XOR A), the output is always zero. This behavior occurs because the XOR gate only outputs one when there is an odd count of ones, and two identical inputs will always yield an even count, thus providing an output of zero.

Q: How can the XOR gate be applied in digital circuits?

The XOR gate can be used in various digital circuits, particularly in arithmetic operations like addition. It is often utilized in adders where it helps in determining the sum bits. Additionally, it plays a critical role in data parity checks and error detection mechanisms due to its unique property of outputting based on the odd parity.

Q: What is the significance of the mathematical representation for the XOR gate?

The XOR gate is mathematically represented as A ⊕ B or A XOR B, where it signifies that the output will be one if and only if one of the inputs is one, but not both. This representation is fundamental for forming equations in digital circuit design, allowing engineers and computer scientists to articulate and calculate complex logic functions.

Summary & Key Takeaways

• The exclusive OR (XOR) gate outputs one if there is an odd number of inputs that are one, while the XNOR gate yields one for an even count of ones, thereby serving as a binary operator in logic circuits.

• The discussion includes the properties of the XOR gate, such as how its output depends on the number of ones in the inputs, with specific mathematical representations and truth tables provided for better understanding.

• Additionally, several properties and proofs associated with the XOR gate are explained, emphasizing its significance in digital logic and circuits, and how it can be used in various logic gate combinations.
