Circulator | Introduction | Microwave Engineering | Lec-75

TL;DR

This video explains microwave circulators, focusing on their multi-port operations and directional signal flow.

Transcript

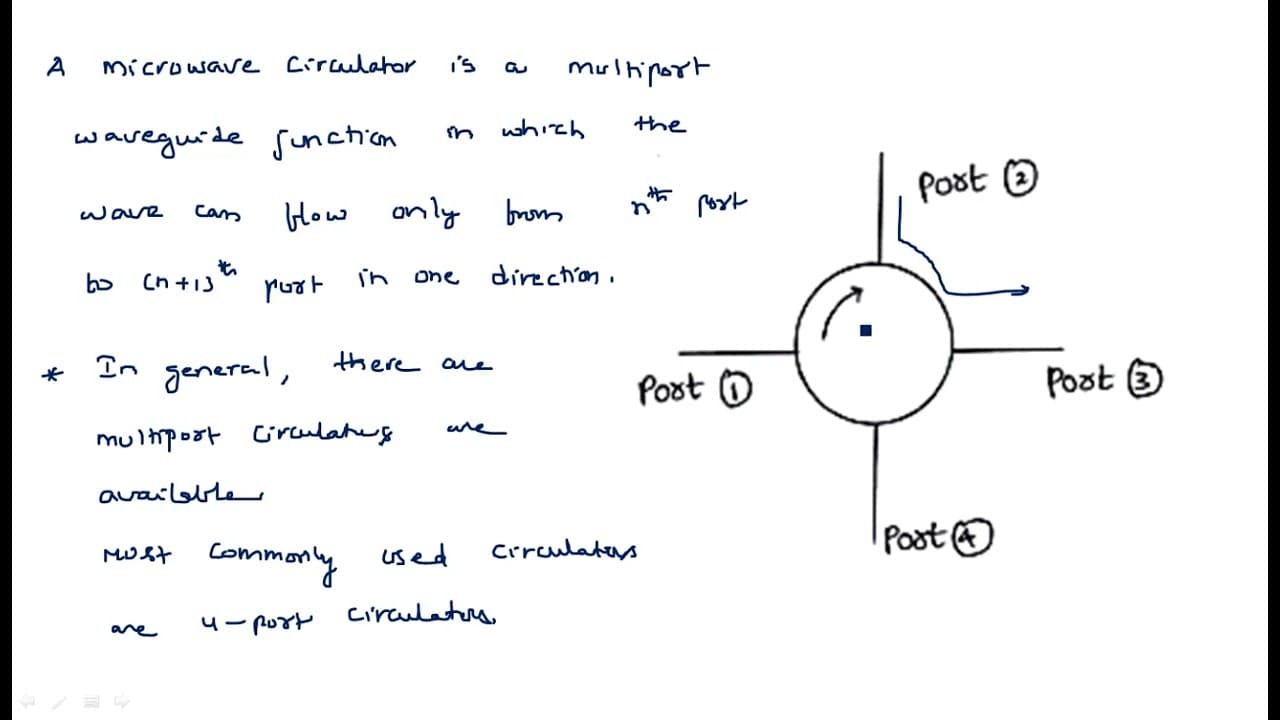

hi everyone in this video I am going to explain about circulator circulatory is a third type of Android device it is also working with the principle of ferrite magnetic material see this is the waveguide and the symbolic representation of the circulator with four ports generally circulators are available in multiport 3 Port 442 minimum of freeports... Read More

Key Insights

• 📡 Microwave circulators operate based on directional signal flow, enhancing communication systems by preventing signal interference.
• 📁 The principles of Faraday rotation are fundamental, as they dictate how signals are directed depending on the orientation of ferrite materials.
• 🚙 Multi-port designs can include three, four, or more ports, although four-port circulators are widely used due to their effectiveness.
• 🚙 Signal isolation is critical; once a signal is transferred to the next port, other ports do not receive any output, ensuring clean transmission lines.
• 🔃 The construction of circulators influences their operational directionality; switching between clockwise and anti-clockwise is possible based on internal materials.
• 👻 The video artistically illustrates the mechanics of signal flow, allowing viewers to understand the complexity of microwave technology in an accessible manner.
• 📡 The importance of orientation and ferrite properties in determining signal pathways cannot be understated, affecting overall system functionality.

Questions & Answers

Q: What is a microwave circulator and what are its primary functions?

A microwave circulator is a multi-port waveguide junction that directs electromagnetic signals. Its primary function is to allow signals to flow in a single direction from one port to another, isolating the other ports, which enhances signal integrity by preventing interference during transmission processes.

Q: How does Faraday rotation play a role in the operation of circulators?

Faraday rotation is a crucial principle whereby the input signal experiences a rotation due to the ferrite material within the circulator. This rotation adjusts the signal's orientation, allowing it to exit from the designated next port while preventing leakage to the other ports, ensuring efficient signal transmission.

Q: Why are four-port circulators preferred in microwave applications?

Four-port circulators are preferred due to their balanced design, which allows effective signal transmission while isolating multiple ports. This design simplifies routing in complex microwave systems, enhances performance, and reduces noise, making it ideal for communication and radar applications.

Q: Can you describe the directional flow of signals in a microwave circulator?

In a microwave circulator, when a signal enters a specific port, it is transferred to the next designated port in a predetermined direction, either clockwise or anti-clockwise. For instance, a signal entering Port 1 will exit via Port 2, while Ports 3 and 4 remain unaffected and isolated from the transmission.

Summary & Key Takeaways

• The video discusses the functionality of microwave circulators, which are multi-port devices that facilitate directional signal flow either clockwise or anti-clockwise, effectively transmitting signals from one port to the next.

• It explores the principle of Faraday rotation, demonstrating how signals are directed based on the orientation of ports and the ferrite magnetic material used in the circulators.

• The most common type discussed is the four-port circulator, where input signals at one port benefit the next port without affecting the others, isolating them from any output.
