CI Engine Injection Systems

TL;DR

This content explains the components and operation of diesel fuel injection systems, including fuel pumps, filters, injection nozzles, and different types of injection pumps.

Transcript

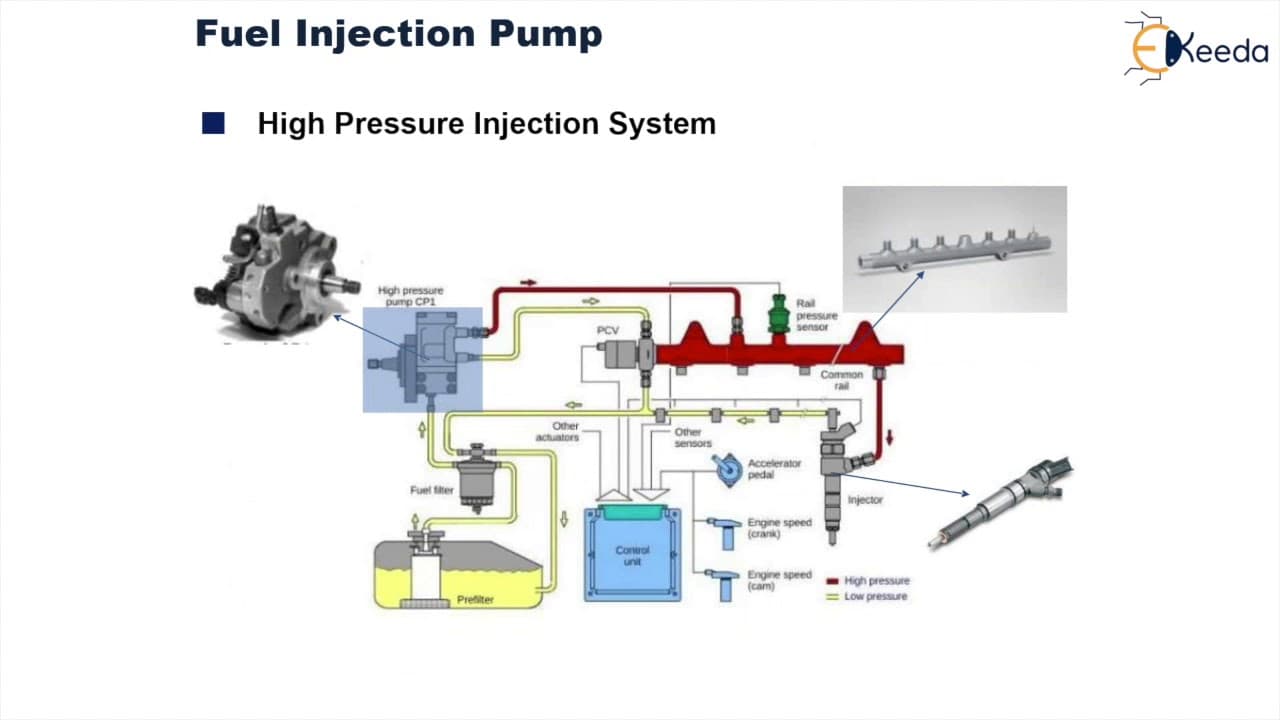

hello everyone today we are going to see how the diesel fuel is injected inside the combustion chamber or in other words we are going to see and discuss what are the components of the fuel injection system when the type of the engine being used is a compression ignition type in this figure you can see the generic composition of the components of a ... Read More

Key Insights

• ⛽ Diesel fuel injection systems consist of components such as fuel pumps, fuel filters, injection nozzles, and injection pumps.
• ⛽ The fuel pump draws fuel from the tank and supplies it to the injection nozzle under high pressure.
• ⛽ Fuel filters prevent impurities from reaching the injection nozzle, ensuring smooth operation.
• ⛽ Injection pumps control the timing and quantity of fuel injection.
• 🅰️ Different types of injection pumps include diaphragm and plunger types.
• 🚃 Common rail direct injection (CRDI) systems offer advantages such as reduced noise, vibrations, and emissions.
• ✊ CRDI systems also improve fuel economy and power output.

Questions & Answers

Q: What is the function of a fuel pump in a diesel engine?

The fuel pump is responsible for drawing fuel from the fuel tank and supplying it to the injection nozzle under high pressure. It also prevents the formation of vapor bubbles and cavitation in the pump.

Q: What is the purpose of a fuel filter in a fuel injection system?

The fuel filter serves to remove impurities from the fuel, ensuring that they do not clog the injection nozzle. It plays a crucial role in maintaining the efficiency and performance of the fuel injection system.

Q: How does a fuel injection pump control the timing and quantity of fuel injection?

The injection pump is equipped with a timer that identifies the degrees of crankshaft rotation, allowing it to supply fuel to the injection nozzle at the appropriate time. The control rod and plunger in the injection pump regulate the quantity of fuel depending on their positions.

Q: What are the different types of fuel injection pumps?

There are two basic types of fuel injection pumps: diaphragm type and plunger type. Diaphragm pumps use a flexible diaphragm to create pressure, while plunger pumps use a reciprocating plunger actuated by a cam to draw fuel into the pump and deliver it to the injection nozzle.

Summary & Key Takeaways

• The content discusses the components of a diesel fuel injection system, including the fuel pump, fuel filter, injection nozzle, and injection pump.

• The fuel pump is responsible for drawing fuel from the fuel tank and supplying it to the injection nozzle under high pressure.

• The fuel filter removes impurities from the fuel to prevent clogging in the injection nozzle.
