What Are Low Pass and High Pass Filters in Circuits?

TL;DR

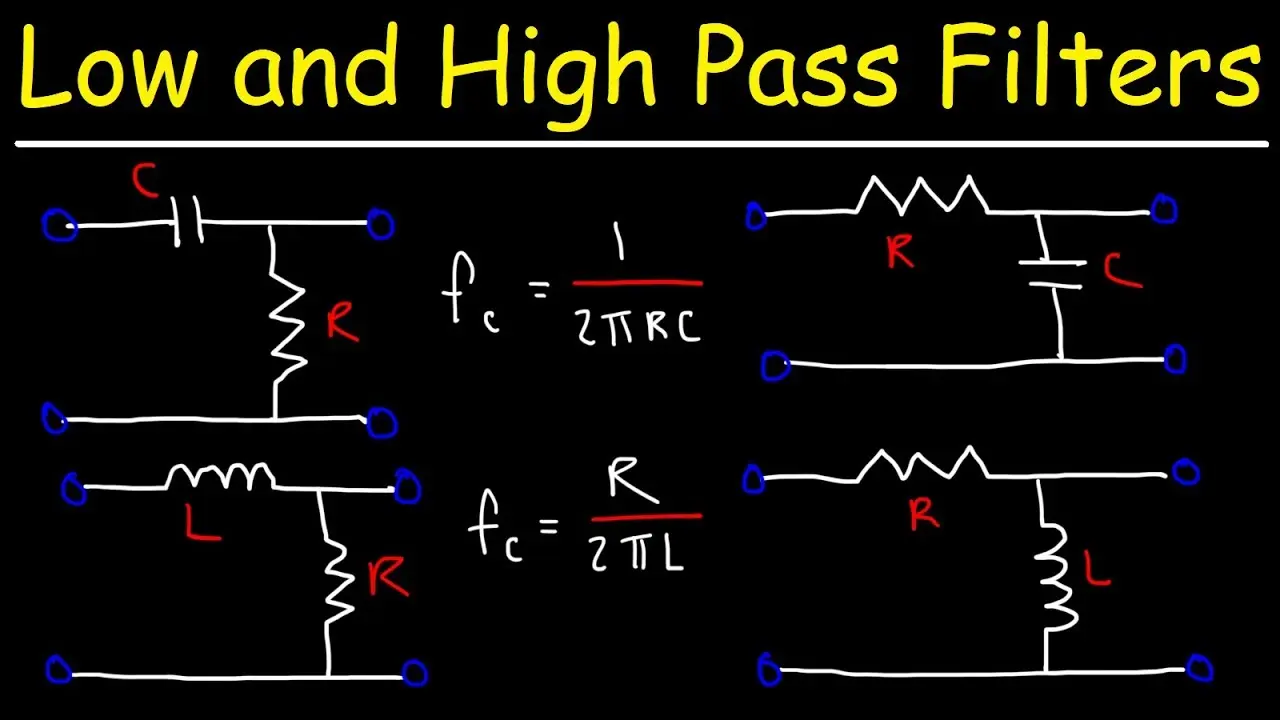

Low pass filters allow low frequency signals to pass while reducing the amplitude of high frequency signals. In contrast, high pass filters allow high frequency signals to pass through while blocking low frequency signals. The cutoff frequency, impacting signal behavior, is determined by the resistor and capacitor values for RC filters or the resistor and inductor values for RL filters.

Transcript

in this video we're going to talk about low pass filters and high pass filters a low pass filter passes low frequency signals but it impedes high frequency signals by greatly reducing its amplitude so in the upper left we have a low frequency signal and as you can see the amplitude has been for the most part relatively the same it hasn't been reduc... Read More

Key Insights

• 👻 Low pass filters allow low frequency signals to pass through and attenuate high frequency signals.
• 😘 RC low pass filters attenuate high frequency signals by reducing their amplitude.
• 💐 RL low pass filters attenuate high frequency signals by impeding their flow.
• 👻 Capacitors block low frequency signals and allow high frequency signals to pass through.
• 👻 Inductors block high frequency signals and allow low frequency signals to pass through.
• 😥 Cutoff frequency determines the point at which a signal is attenuated in a filter circuit.
• ❓ The cutoff frequency of an RC filter is determined by the values of the resistor and capacitor.

Summary & Key Takeaways

• Low pass filters allow low frequency signals to pass through while impeding high frequency signals by reducing their amplitude.

• RC (resistor-capacitor) low pass filters have a frequency response that attenuates high frequency signals, with the cutoff frequency determined by the values of the resistor and capacitor.

• RL (resistor-inductor) low pass filters allow low frequency signals to pass through while blocking high frequency signals, with the cutoff frequency determined by the values of the resistor and inductor.
