What Is a Monostable Multivibrator and How Is It Designed?

TL;DR

A monostable multivibrator is a circuit that remains in a stable state until triggered to switch momentarily to an unstable state. The duration of this unstable state is determined by the resistor and capacitor values, following the formula T = 0.693 * R2 * C. This design is useful for generating time delays and controlling signals in electronic applications.

Transcript

Hey friends, welcome to the YouTube channel ALL ABOUT ELECTRONICS. So, in this video, we will learn, how the monostable multivibrator can be designed using the BJT. So, the monostable multivibrator is the circuit where the output of the circuit remains in the stable state but whenever the external trigger signal is applied then momentarily the outp... Read More

Key Insights

• A monostable multivibrator has one stable state and switches to an unstable state upon receiving a trigger signal.
• The duration of the unstable state is determined by the values of a resistor and a capacitor in the circuit.

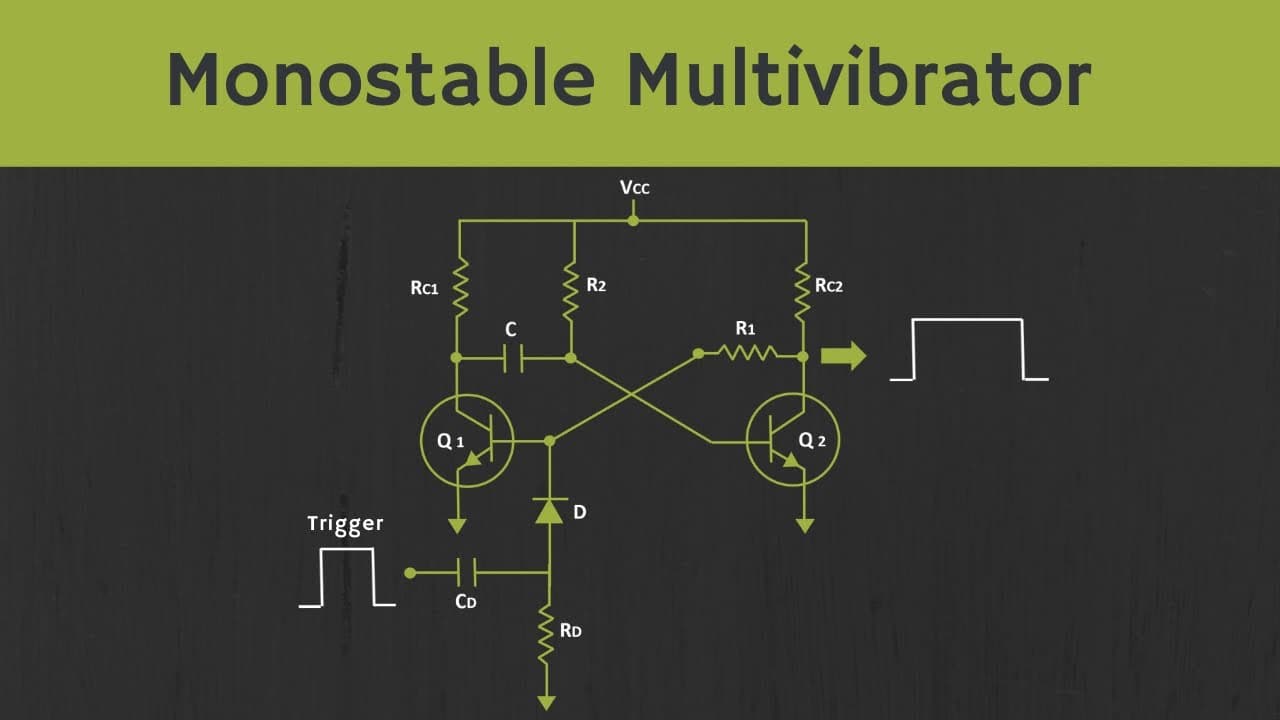

• The circuit employs two cross-coupled transistors, with one initially turned off and the other on.
• The operation of the transistors involves switching between cut-off and saturation regions, acting as open and closed circuits respectively.
• A trigger signal causes the circuit to momentarily switch states, determined by a differentiator circuit that detects pulse edges.
• The time for which the circuit remains unstable is derived as T = 0.693 * R2 * C, based on the RC time constant.
• For optimal voltage output, the resistor R1 should be at least ten times higher than Rc2, ensuring the output is close to Vcc.
• Monostable multivibrators are useful for generating time delays, switching relays, PWM output, and frequency division.

Questions & Answers

Q: What is a monostable multivibrator?

A monostable multivibrator is a type of electronic circuit with one stable state. Upon receiving an external trigger signal, the circuit momentarily switches to an unstable state before returning to stability. The duration of this unstable state is determined by the values of a resistor and a capacitor in the circuit.

Q: How does the monostable multivibrator circuit operate?

The monostable multivibrator circuit operates using two cross-coupled transistors. Initially, one transistor is off, and the other is on. When a trigger signal is applied, the circuit temporarily switches states. The transistors alternate between cut-off and saturation regions, acting as open and closed circuits, respectively, with the duration of the unstable state controlled by an RC time constant.

Q: How is the unstable state duration determined in the circuit?

The unstable state duration in the monostable multivibrator circuit is determined by the RC time constant, specifically by the values of a resistor (R2) and a capacitor (C). The time duration is mathematically derived as T = 0.693 * R2 * C, where the circuit remains in the unstable state for this calculated period before returning to stability.

Q: What role do the transistors play in the circuit?

In the monostable multivibrator circuit, the transistors are cross-coupled and play a crucial role in switching the circuit between stable and unstable states. They operate in cut-off and saturation regions, acting as open and closed switches, respectively. This switching behavior is essential for the circuit's operation, allowing it to respond to trigger signals.

Q: Why is resistor R1 important in the circuit design?

Resistor R1 is important in the monostable multivibrator circuit design because it influences the output voltage during the unstable state. For optimal performance, R1 should be at least ten times higher than Rc2 to ensure that the output voltage is close to Vcc. This configuration helps maintain the desired voltage levels during circuit operation.

Q: What are some applications of monostable multivibrators?

Monostable multivibrators have several applications, including generating time delays, switching relays, producing pulse width modulated (PWM) output, and frequency division. These applications benefit from the circuit's ability to switch states momentarily, providing precise timing and control in various electronic systems.

Q: How is the trigger signal applied in the circuit?

The trigger signal in the monostable multivibrator circuit is applied through a differentiator circuit that detects the rising and falling edges of the pulse. This circuit ensures that a narrow triggering pulse is available at the base of one of the transistors, initiating the switch to the unstable state. The trigger signal is crucial for the circuit's operation.

Q: What happens during the unstable state of the circuit?

During the unstable state of the monostable multivibrator circuit, the transistors switch roles, with the initially off transistor turning on and vice versa. This causes the capacitor to charge in the reverse direction, and the voltage across it changes. The circuit remains in this state for a duration determined by the RC time constant before returning to stability.

Summary & Key Takeaways

• This video explains how to design a monostable multivibrator using BJT transistors. It covers the circuit's operation, focusing on the transition between stable and unstable states triggered by an external signal. The unstable duration is controlled by a resistor and capacitor, with detailed derivation of the time formula.

• The monostable multivibrator circuit uses two cross-coupled transistors. Initially, one transistor is off, and the other is on. A trigger signal causes the circuit to switch states temporarily, with the duration determined by the RC time constant. The circuit's output voltage is optimized by adjusting resistor values.

• Applications of monostable multivibrators include generating time delays, switching relays, producing PWM output, and frequency division. The video provides a comprehensive understanding of the circuit's design and operation, with a focus on the mathematical derivation of the time duration for the unstable state.
