What is a Weir?

TL;DR

Weirs control river water levels without creating reservoirs.

Transcript

Being able to control the level of water in a river is beneficial in quite a few ways. Historically, mills relied on water power to drive saws, grinding wheels, and other equipment. Raising the water level in a river can also allow boats and ships to navigate areas that would otherwise be inaccessible. Finally, having control of a river can help mi... Read More

Key Insights

• Weirs are small dams used to control upstream water levels, differing from large dams that create reservoirs.
• The primary purpose of a weir is not storage, but to gain control over water levels in rivers and streams.
• A weir's flow depends on its length, the water height above its crest, and its geometric coefficient.
• Passive weirs have fixed rating curves, leading to variable upstream water levels during different flow conditions.
• Controlled outlets, like gates, offer flexibility in managing water flow but add complexity and operational demands.
• Non-linear or labyrinth weirs increase discharge capacity without expanding footprint size, flattening the rating curve.
• Weirs provide benefits like power generation, improved navigation, and flood control but can disrupt aquatic environments.
• Many obsolete weirs are being removed to restore natural river states, yet they remain crucial for water management.

Questions & Answers

Q: What is the primary purpose of a weir?

The primary purpose of a weir is to control the upstream water level in a river or stream without creating a reservoir. Unlike large dams, which are designed for water storage, weirs aim to manage the flow and level of water, providing benefits such as improved navigation, flood control, and power generation.

Q: How does a weir affect upstream water levels?

A weir affects upstream water levels by increasing them. The height of the water level above the weir's crest, along with the weir's length and geometry, determines the flow over the weir. This control allows for benefits like improved navigation and flood mitigation, but can also lead to variability in water levels during different flow conditions.

Q: What are the limitations of passive weirs?

Passive weirs have fixed rating curves, meaning their flow capacity cannot be adjusted once installed. This can lead to significant variability in upstream water levels during different flow conditions, such as floods. Such variability may cause upstream damage or require additional infrastructure, like higher dams, to accommodate extreme water levels.

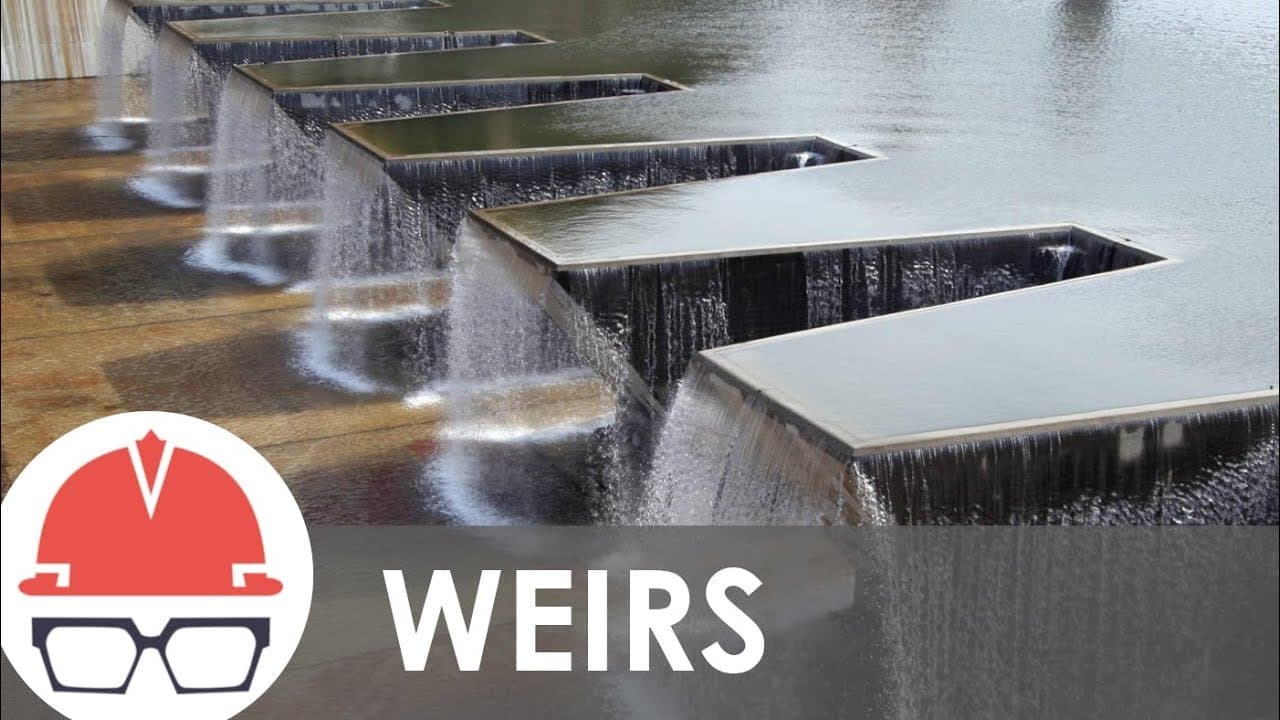

Q: What is a non-linear weir and its advantage?

A non-linear weir, such as a labyrinth weir, increases the effective length of the weir within a fixed footprint by folding the structure. This design allows for greater discharge capacity at lower water levels, effectively flattening the rating curve. Non-linear weirs provide increased efficiency without the need for actively controlled outlets, reducing complexity and operational demands.

Q: What are some disadvantages of weirs?

While weirs offer benefits like flood control and power generation, they can negatively impact aquatic ecosystems by altering natural water flow and disrupting habitats. Additionally, low head dams created by weirs pose safety risks to swimmers and boaters. Many obsolete weirs are being removed to restore natural river conditions, highlighting these environmental concerns.

Q: How do controlled outlets enhance weir functionality?

Controlled outlets, such as gates or valves, enhance weir functionality by allowing for adjustable flow management. This flexibility enables the structure to handle varying flow conditions, such as floods, more effectively. However, controlled outlets add complexity to the structure, requiring continuous operational oversight and potentially increasing maintenance costs.

Q: What role do weirs play in flood control?

Weirs play a significant role in flood control by managing water levels and flow rates in rivers and streams. By raising upstream water levels, weirs can help mitigate the impact of flooding in downstream areas. However, during extreme flood events, passive weirs may require additional infrastructure to prevent upstream damage, highlighting the need for controlled outlets in some scenarios.

Q: Why are some weirs being removed?

Some weirs are being removed to restore natural river conditions and improve aquatic ecosystems. Obsolete weirs can disrupt natural water flow and habitats, impacting wildlife and water quality. Removing these structures helps to reestablish natural river dynamics, benefiting the environment and reducing safety risks associated with low head dams.

Summary & Key Takeaways

• Weirs are engineered structures built across rivers to control upstream water levels without creating reservoirs. Unlike large dams, weirs aim to manage water flow rather than store it. They have been used historically for purposes like powering mills and aiding navigation, while also mitigating flood risks.

• The flow over a weir is determined by its length, the water height above its crest, and the weir's shape. While passive weirs have fixed flow capacities, controlled outlets like gates can adjust flow but require more complex operations. Non-linear weirs offer increased discharge without expanding footprint.

• Despite their benefits, such as power generation and flood control, weirs can negatively impact aquatic ecosystems. Many outdated weirs are being removed to restore natural river conditions. However, weirs remain vital tools for hydraulic engineers in managing water flow in constructed environments.
